Porcelain Clad Vacuum Circuit Breaker – Outdoor

36 kV / 3150 A

JVS HT-1 Medium Voltage Panels deliver safe, reliable switching and distribution for utility, industrial and infrastructure applications. Engineered for medium-voltage networks up to 36 kV, the HT-1 series combines robust construction, flexible configuration and proven protection — built to perform in the most demanding environments.

Characteristics

Safe, reliable switching and distribution.
Robust construction for industrial environments.
Flexible configuration and expandability.
Protection and metering options available.
Designed as per applicable IEC / IS standards.

Technical

Rated voltage / current: as per design.
Short-circuit withstand: as specified.
Degree of protection: IP as required.
Form of separation: as required.
Standards: IEC / IS-compliant design.

Product Applications

Inside the JVS
Porcelain-Clad VCB

Main components of the HT-1 Medium Voltage Panel

JVS HT-1 panels combine vacuum circuit breakers, segregated bus compartments and reliable cable terminations — engineered for safe, predictable medium-voltage switching across decades of service.

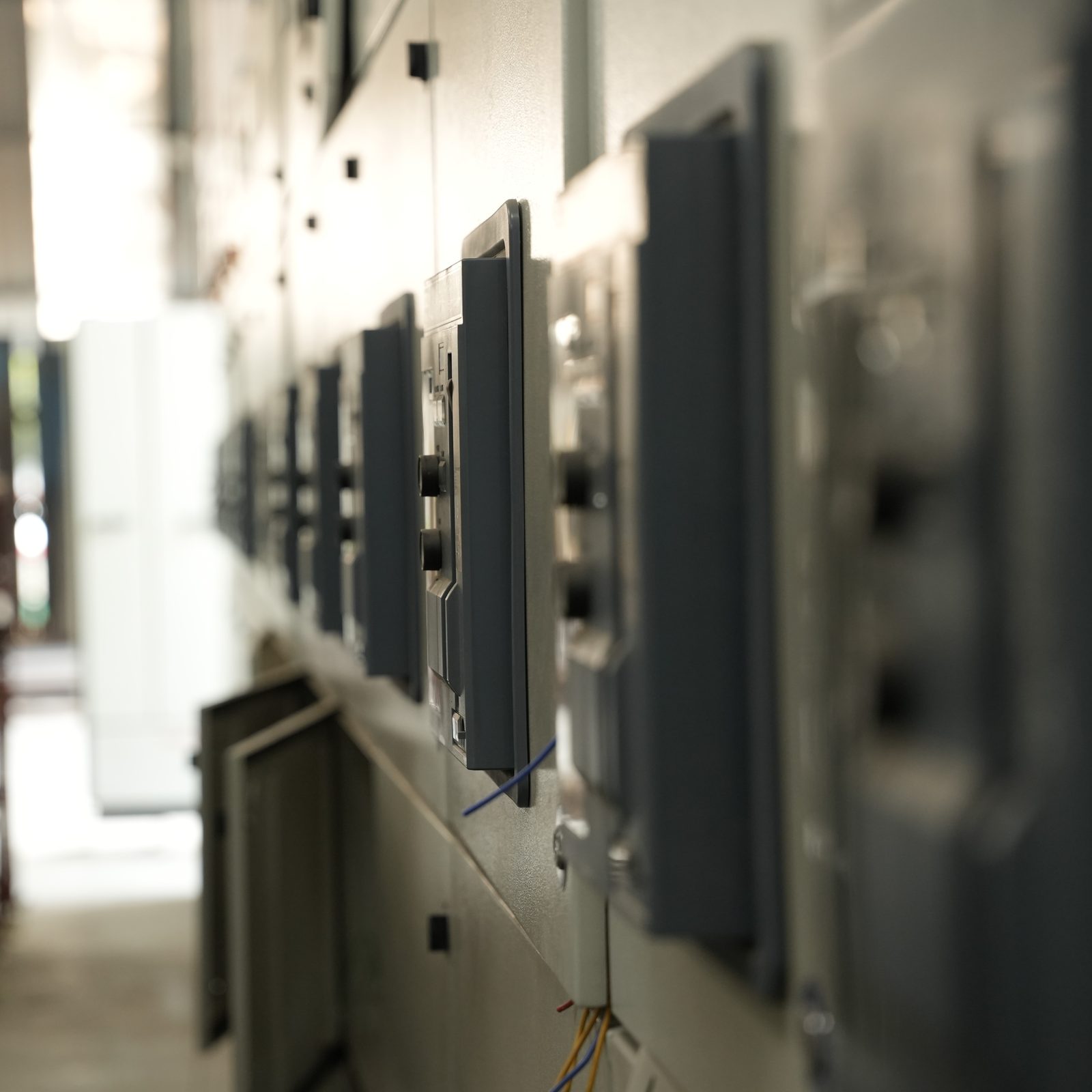

Bus Bar System

Segregated bus compartments with high-conductivity copper bars ensure safe current distribution and easy maintenance access.

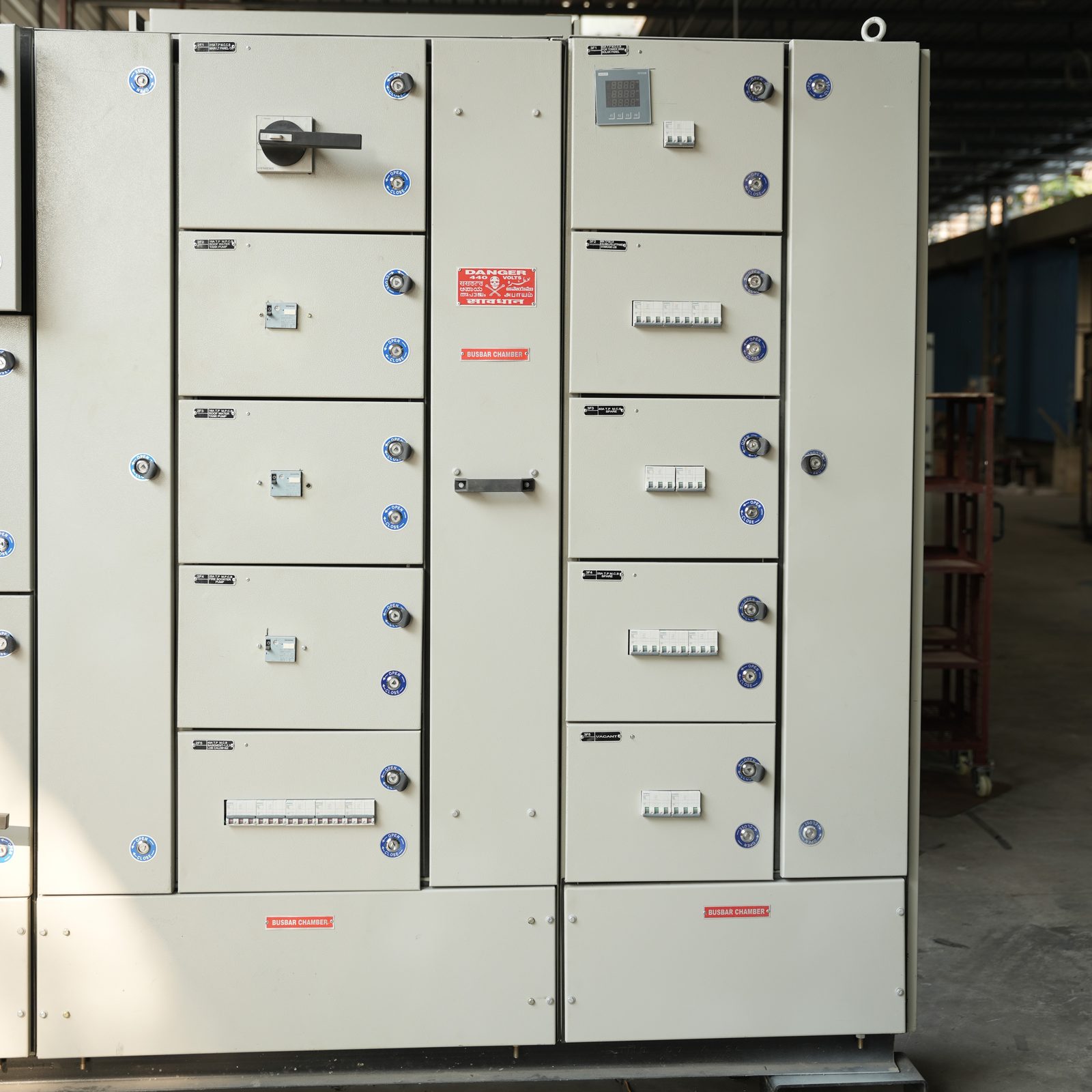

Vacuum Circuit Breaker

Reliable vacuum circuit breakers handle rated and short-circuit currents with predictable interrupting performance.

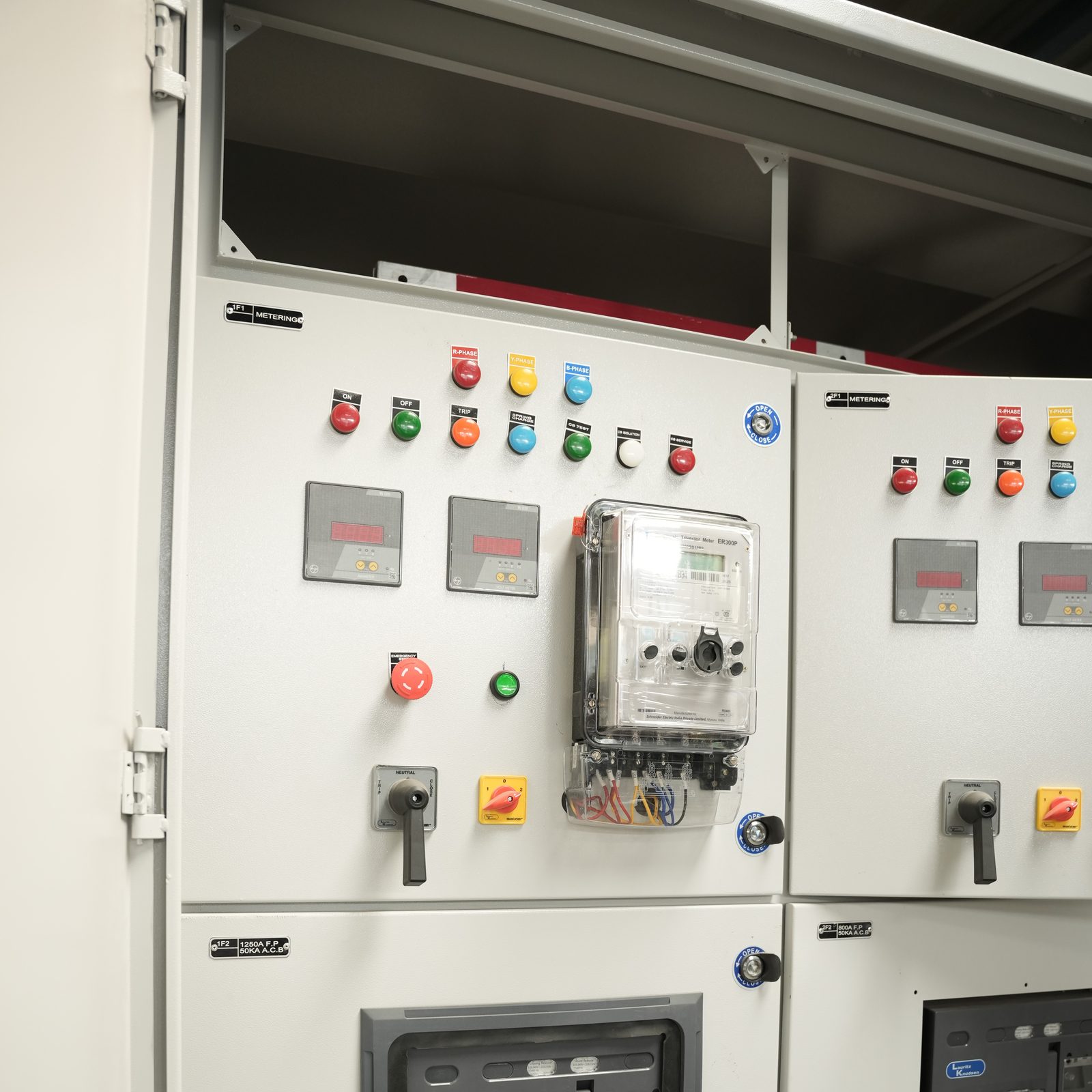

Cable Compartment

Generously sized cable compartment with insulating supports for clean, safe terminations and field-friendly cable entry.

Panel Front & Mimic

Front panel with mimic diagram, indication lamps and metering supports clear operator awareness and safe operation.

Switching with confidence.
Protection without compromise.
